SELF DUMPING HOPPERS
WELDED WATERTIGHT. VERSATILE HOPPERS ARE EXCELLENT FOR HANDLING HEAVY, BULKY SCRAP,
IN-PROCESS MATERIALS, CASTINGS, WOOD AND METAL CHIPS, RECYCLABLES AND SLUDGE

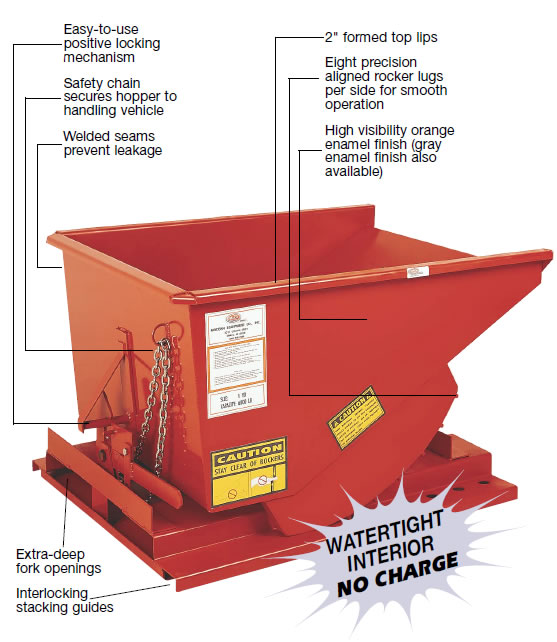

These rugged, welded steel hoppers solve your
bulk handling problems and
increase productivity—low cost means quick payback! Hoppers are designed for
forklift handling, dump safely from any height and are precisely balanced to tip
forward for complete discharge of contents and return to an upright position. For
wet or dry use. A positive locking latch prevents accidental dumping; 2" formed
top lips increase rigidity and eliminate sharp edges. A safety chain secures the
hopper to the handling vehicle. Empty units through 2 cubic yard size can be
stacked up to 3 high for space savings (not to be stacked when loaded). Hoppers
are shipped fully assembled; choice of colors: orange or gray enamel (hoppers will
be painted orange unless suffix “– G” is added to the model number).
Choose the Extra Heavy Duty hoppers for the most demanding applications.
Heavy Duty hoppers and Medium Duty hoppers are available for loads that don’t
require the capacity of the Extra Heavy Duty models. Empty units through 2 cubic
yards can be interstacked up to 3 high with heavier or lighter models of like size.
Dimensions represent the overall width, length and height.
SELF DUMPING HOPPER ACCESSORIES
HINGED LIDS for self dumping hoppers must be factory installed. One lid size fits Extra Heavy, Heavy, or Medium Duty
hoppers. Painted orange or gray. Hoppers with lids are not stackable. The
addition of a lid may alter the operation of the hopper. Please specify type A,
B or C as set forth below. Indicate the type as a suffix to the model number.
Add CASTERS to your hopper for mobility and free your valuable fork truck.
Casters are available for hopper sizes through 21/2 cubic yards—6" or 8"
diameter—in a two swivel/two rigid combination. All wheels have roller
bearings; swivel casters have hardened double-ball raceway and 3/4" kingpin.
Hoppers are shipped with casters bolted to the base; casters may be field
installed.
OTHER POPULAR ACCESSORIES such as 3-way entry, platform legs and
trip chains are available, please call our sales representative for
prices and specifications. Hoppers with accessories are non-returnable.
When ordering a hinged lid for a self dumping hopper, please specify type A, B or C as set forth below. Indicate the type as a suffix to the model number.
SELF DUMPING HOPPERS
FULL 90° DUMP ANGLE FOR 100% DISCHARGE OF WET, VISCOUS MATERIALS. WELDED WATERTIGHT!
The Series 90 Self Dumping Hopper is designed for forklift handling. Easy dump
release: while seated on forklift, operator simply pulls the dump cable to release
the spring-loaded latch for a full 90° tilt. Hopper returns to an upright position
when lowered to the ground. A positive locking mechanism prevents accidental
dumping while a safety chain secures the hopper to the forklift.
Available in orange or gray enamel. Hoppers will be painted orange unless suffix
“-G” is added to the model number.
